Creating Intel® VROC RAID Volume on Intel® Server M50CYP Family

Description

Users experience difficulties in creating RAID volumes using Intel® VROC on Intel® Server M50CYP Family. The steps below can help users to configure an Intel® VROC RAID volume

Resolution

Follow below steps to configure an Intel® VROC RAID volume:

1. Enable the Intel® VMD Controller Domains by accessing BIOS> Advanced> Integrated IO configuration> Volume Management Device. Refer to the figure below

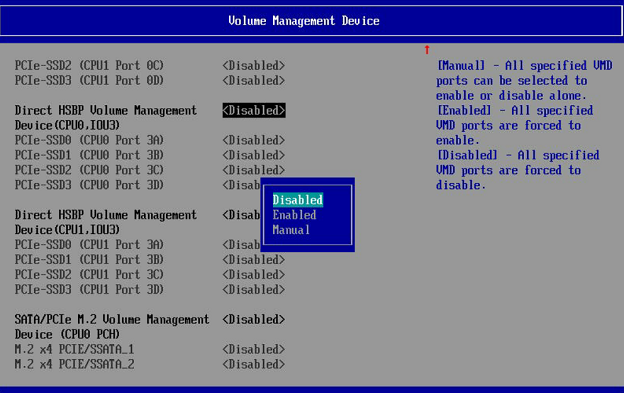

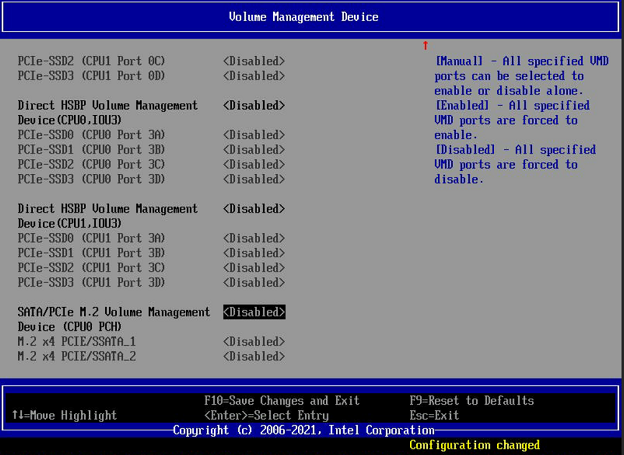

   Volume Management Device



   Select Enable

2. Press the key F10 to save the settings. Once the system restarts, press the key F2 to access BIOS.

3. Navigate to BIOS > Advanced > PCI configuration > UEFI option ROM control > Intel® Virtual RAID on CPU. See the below figure as reference.

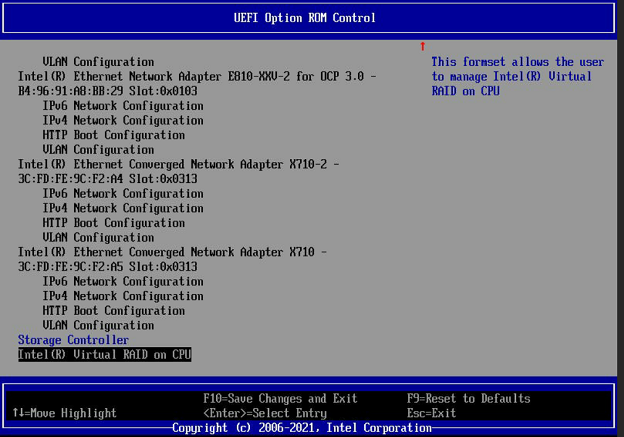

   Intel Virtual RAID on CPU

4. Select the option All Intel VMD Controllers. This will display the list of drives detected and the menu options to create RAID volumes. Refer to the figure below



   SSDs detected and menu options to create RAID

5. Create the desired RAID volume by selecting the drives and the RAID level. Refer to the figures below

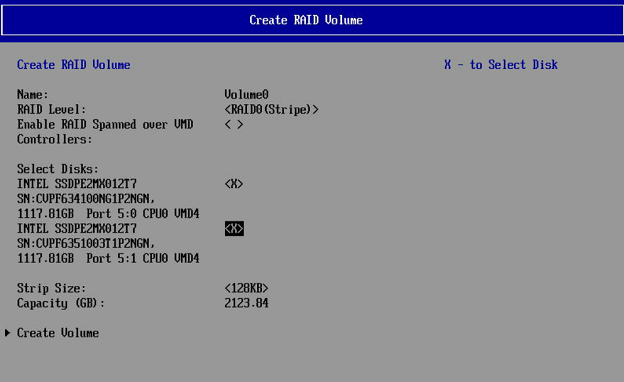

   Create RAID Volumes

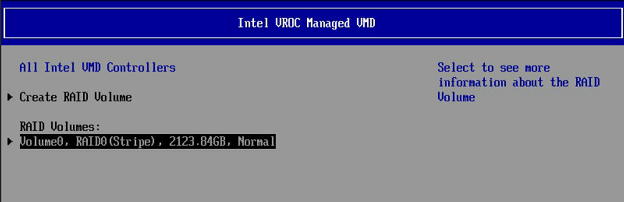

   RAID volumes

Add-in card NVMe* devices

Intel® Server M50CYP Family based-systems do not support Intel® VROC for add-in card NVMe* devices due to the inability to enable Intel® VMD on PCIe slots. Drives are detected in BIOS under the storage controller section, but Intel® VROC RAID volumes cannot be configured on them.
